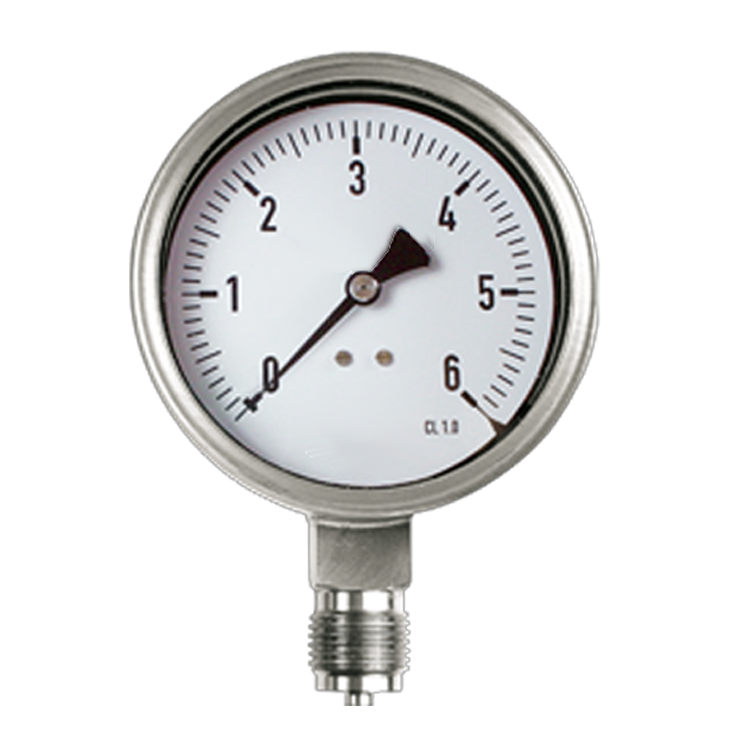

Threaded Stainless Steel Pressure Gauge
A versatile range of fully stainless steel pressure gauges designed for industrial and pharmaceutical applications. These gauges feature toughened glass lenses and are available in both DN63 and DN100 dial sizes. All units are supplied with a choice of dry case or liquid damping fill to suit various operating environments. Standard configurations include bottom-entry male thread connections, with FDA-compliant case fill fluids. Ideal for high-purity applications, clean steam systems, and sanitary installations where corrosion resistance and reliability are essential.
| Specification | Details |
|---|---|
| Dial Sizes | DN63 (1/4″ and 3/8″ BSP parallel) DN100 (3/8″ and 1/2″ BSP parallel) |
| Case Material | Stainless steel body Laminated safety glass lenses |
| Pressure Ranges | Standard: 0-2.5, 0-4, 0-6, 0-10, 0-16, 0-20, 0-25 bar Custom ranges: Full vacuum to 40 bar |
| Standard Configuration | Bottom entry Male threaded connection Dry or liquid-filled case |
| Case Diameters Available | 63mm, 100mm, 160mm |
| Connection Options | BSP taper NPT male threaded Bottom, back, or side entry |
| Special Case Types | Panel mount Safety pattern cases ATEX rated (explosion-proof) |
| Wetted Parts Materials | Stainless steel (standard) Brass option Monel option |
| Optional Features | Oxygen cleaning treatment Electrical contact system Clamp connections Flanged connections |
| Lens Type | Toughened glass (impact-resistant) |
| Fill Fluid | Dry or FDA-compliant liquid damping |
